Position: Home > Products > Crane Component
EN standard crane hook block
FEM standard crane hook block
DIN standard crane hook block
DIN standard crane hook block

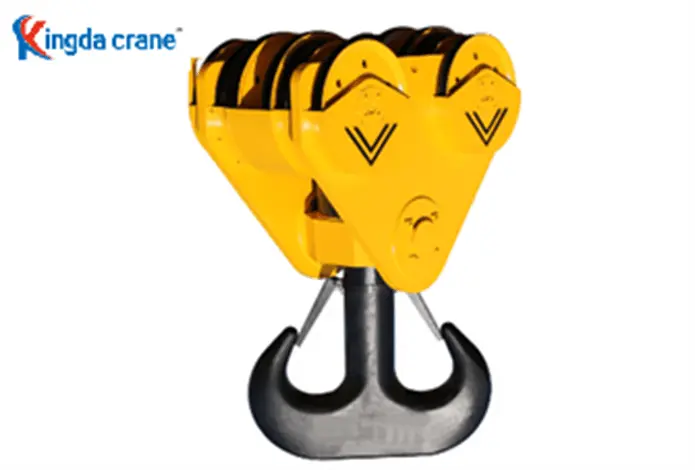

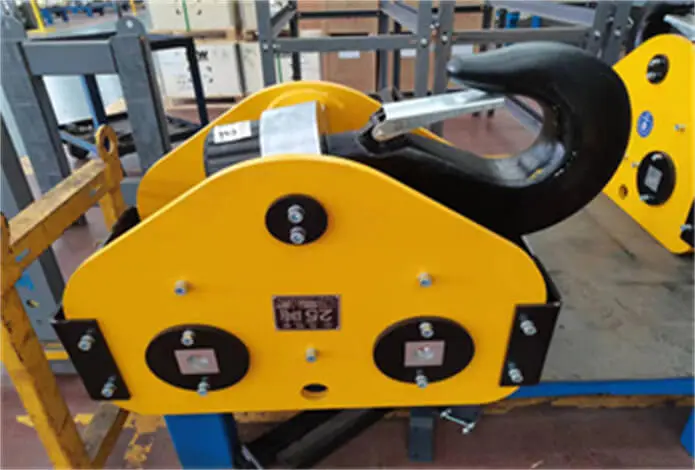

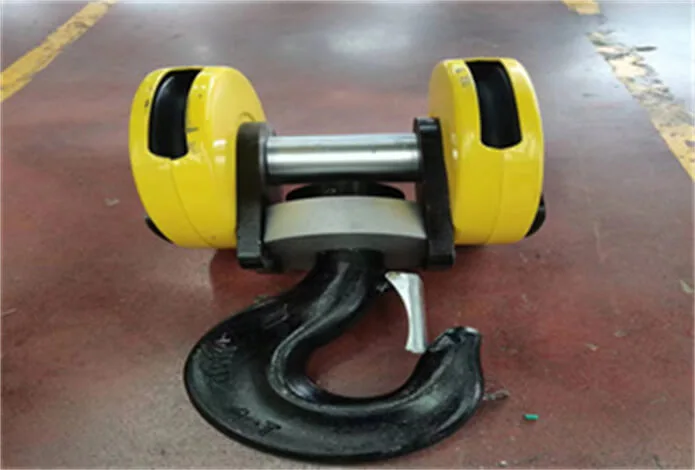

Crane Hook Block

Lifting capacity (t): 3.2, 5, 10, 16, 20, 32, 50, 75, 100, 200,400
Closure: totally enclosed or semi-enclosed
Hook head: C or 山
Hook head material: DG20; DG20Mn; 35CrMo; 34Cr2Ni2Mo; 30Cr2Ni2Mo
Pulley material: Q355B; Q235B; HT200
Bearing bran: SKF, FAG, NSK or others
Crane hook block is one of important crane lifting mechanism, lifting capacity covers 3.2t-200t
Send Email
Chat Now
Product description
TECHNICAL PARAMETERS
Related products
Send Your Inquiry
Product description
Crane Hook Block Usage: crane lifting mechanism
1. Extend the service life of steel wire ropes, small deviation in placing objects;
2. Smooth transmission, low noise, compact structure;
3. Weight reduction, height reduction, energy saving and consumables reduction.

♦  Lifting capacity (t): 3.2, 5t, 10t, 16t, 20t, 32t, 50t, 75t, 100t, 200t,
♦  Closure: totally enclosed or semi-enclosed
♦  Hook head: C or 山
♦  Hook head material: DG20; DG20Mn; 35CrMo; 34Cr2Ni2Mo; 30Cr2Ni2Mo
♦  Pulley material: Q355B; Q235B; HT200
♦  Bearing brand: SKF, FAG, NSK or others

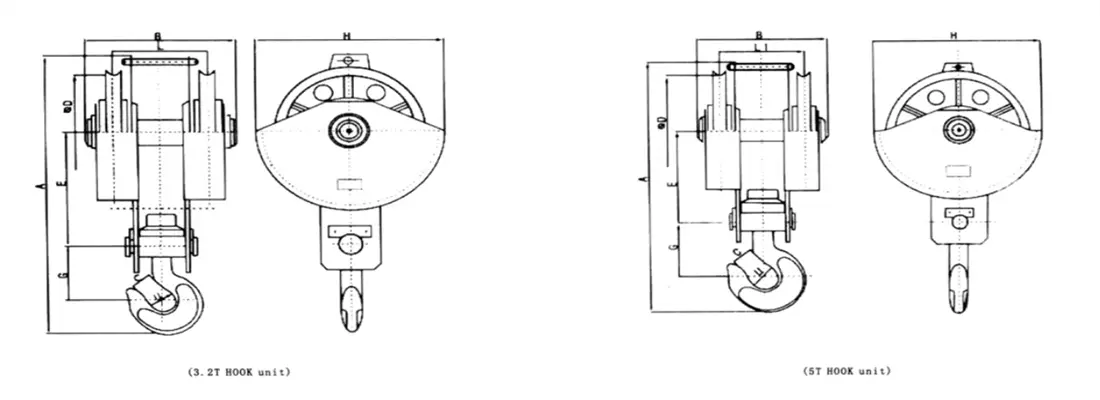

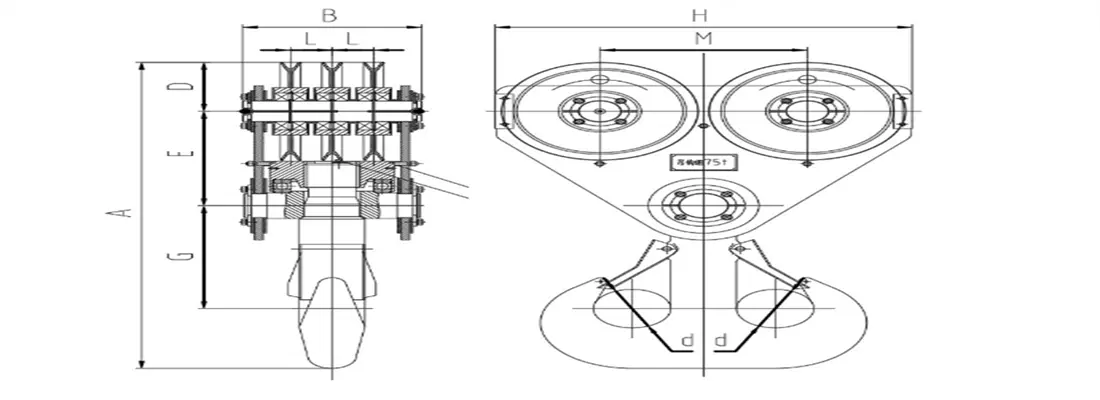

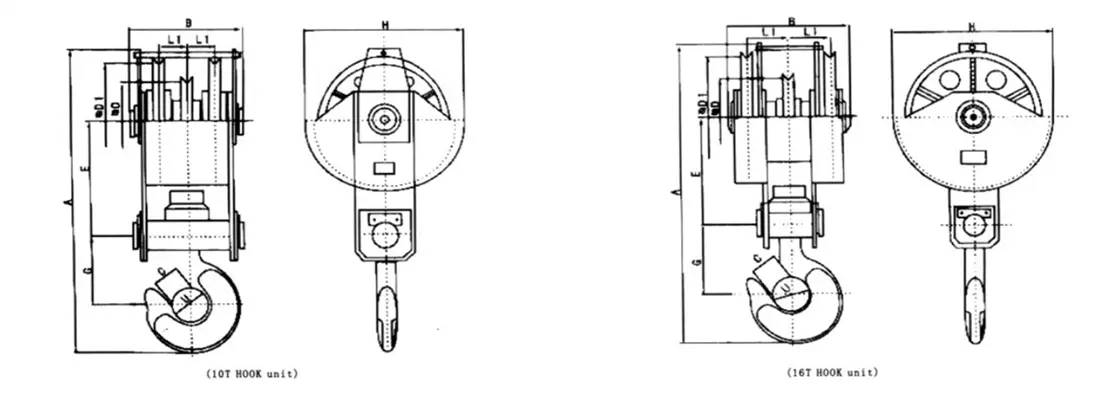

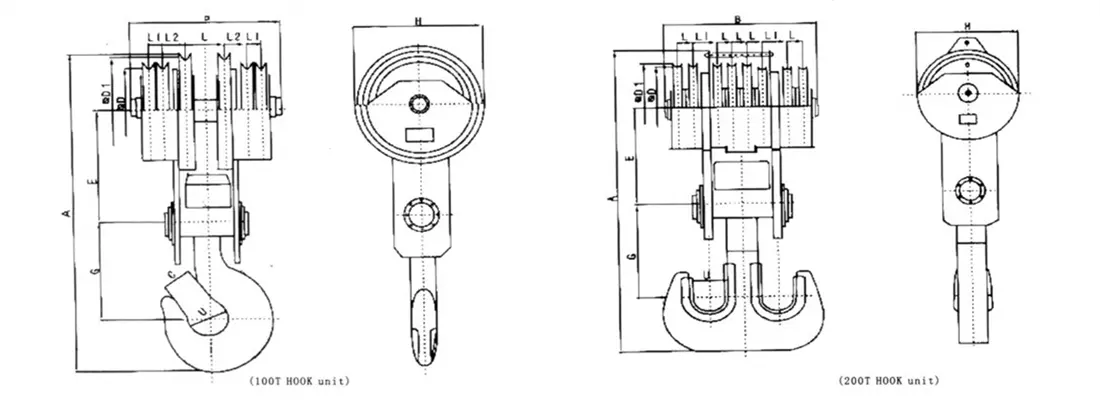

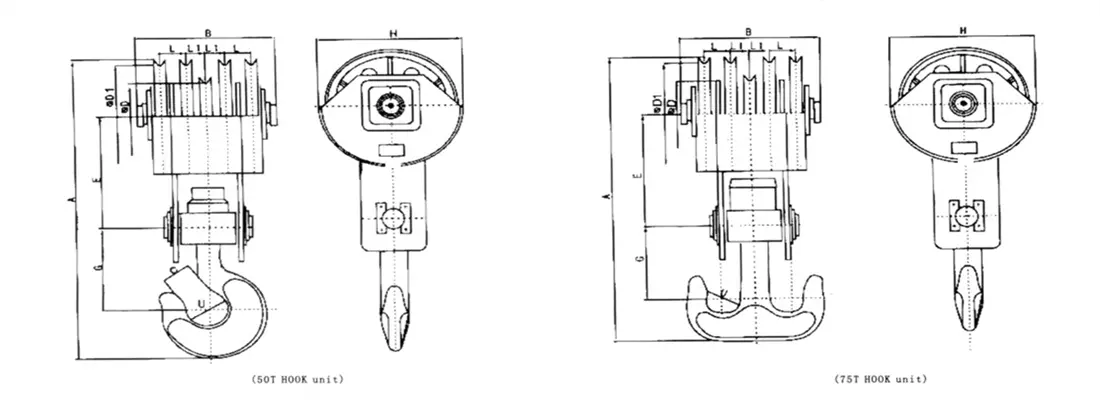

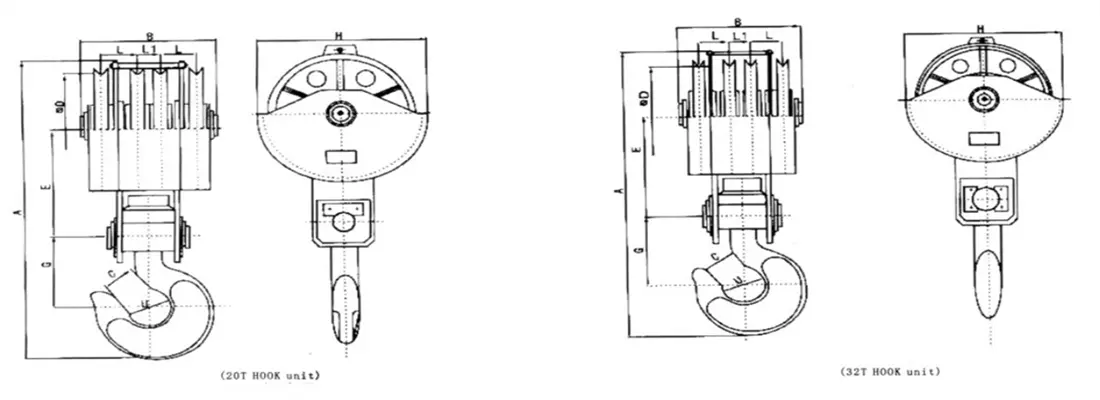

TECHNICAL PARAMETERS
Specification Parameter (mm) Wire rope Weight(kg)
A B H E G L L1 L2 C U φD1 φD2 Dia (mm) NO.
3.2t 775 350 420 320 150 220 / / 50 65 / 300 11-14 4 80
5t 858 370 480 320 184 240 / / 65 85 / 350 11-14 4 100
10t 1080 378 526 410 243 / 92 / 90 120 380 250 11-14 6 200
16t 1330 506 660 485 307 / 172 / 115 150 500 310 14-20 6 330
20t 1415 524 653 510 333 136 93 / 130 170 / 500 16-20 8 460
32t 1740 604 780 620 420 155 105 / 160 210 / 610 18-22 8 845
50t 1965 750 815 710 510 170 109 / 205 270 710 610 20-22 10 1500
75t 2335 970 1012 930 600 185 135 / 250 320 800 500 26--32 10 2500
100t 3130 1360 1162 1100 955 350 131 200 270 355 1000 800 28-34 12 4200
200t 3548 1617 1090 1185 1298 159 264 / / 340 1100 900 30-38 16 9100
