Electric hydraulic grab

Product description

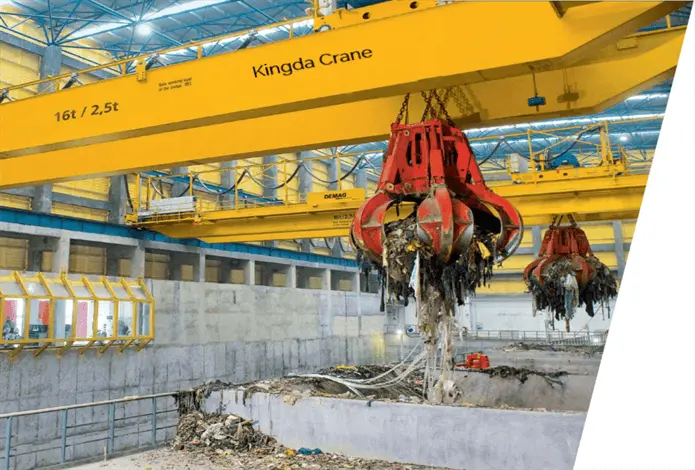

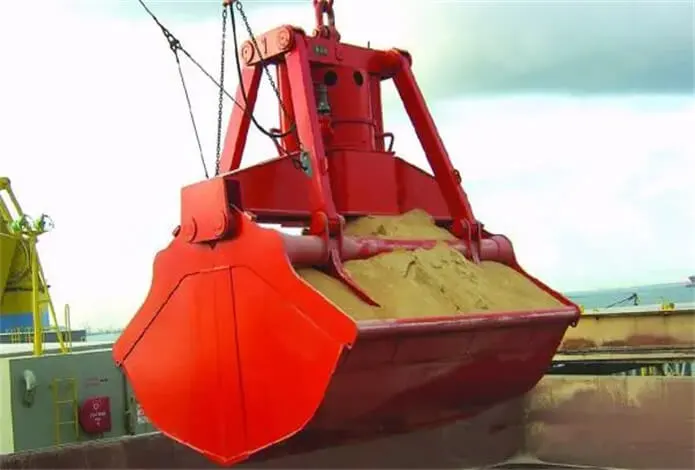

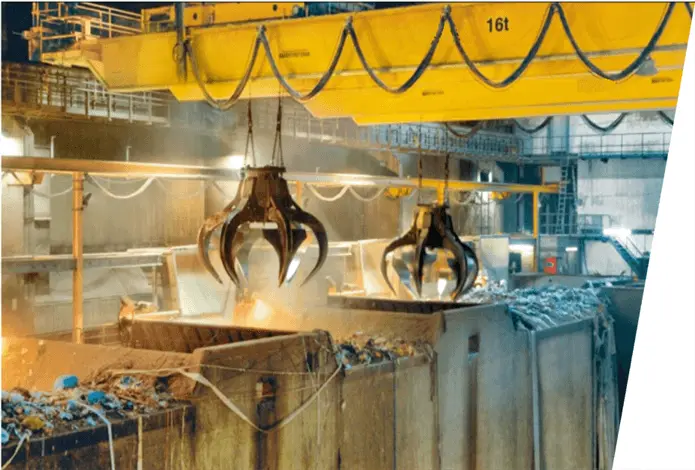

Electric hydraulic grab is divided into multi-jaws electric hydraulic grab and double jaw electric hydraulic grab, mainly used for garbage incineration power generation, waste steel and battery treatment, etc.

Electric hydraulic grab relies on the electric hydraulic system carried by the grab itself to complete the opening and closing actions of the grab.
It comprehensively adopts electrical, hydraulic, and mechanical technologies, with a
♦  Compact structure
♦ Beautiful appearance
♦  High degree of automation
♦ High efficiency and energy conservation
♦ Higher excavation and closing forces than the same specification.

Crane mode: gantry crane, overhead crane
Volume range: 0.5-12 m³
Crane maximum lifting capacity: 20 t

♦  Constant power+load sensitivity+pressure cutoff hydraulic system.
♦  Imported brand components with good sealing,
♦  Low temperature rise
♦  High cost-effectiveness
♦  Can work under water

TECHNICAL PARAMETERS

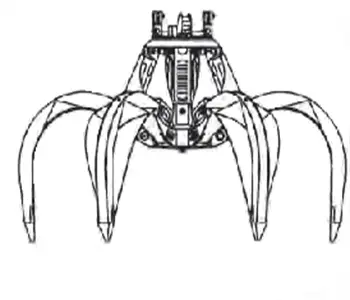

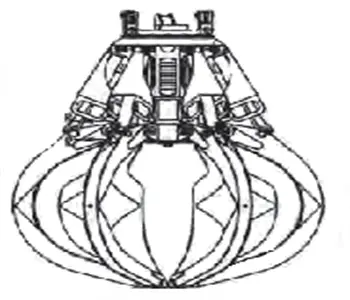

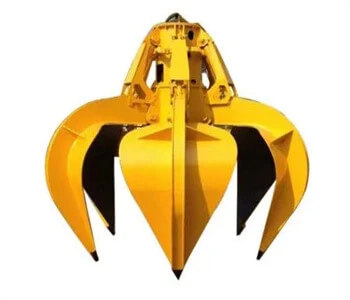

Multi-jaws Electric Hydraulic Grab

No.	Mode	Volume m3	Type	Material density t/m3	Power	Self-weight t	Crane lifting capacity t	Grab height (closing) mm	Grab length (closing) mm	Grab height (opening) mm	Grab length (opening) mm	Jaw number	Remark
1	ZY64-220-0200	2	Heavy	2.5	22	4.50	10	3095	2300	2720	3350	6	semi-opening	multi-jaws electric hydraulic grab
2	ZY63-370-0050	5	Middle	1.35	37	3.60	10	3381	2760	2820	3930	6	all closing
3	ZY62-185-0050	5	light	0.5	18.5	3.10	10	3381	2760	2820	3930	6	all closing
4	ZY62-300-0800	8	light	1	30	5.10	16	3749	3166	3000	5000	6	all closing
5	ZY62-185-0400	4	light	1	18.5	4.00	10	3100	2635	2545	4025	6	semi-opening
6	ZY62-300-0630	6.3	light	1	30	5.90	16	4520	3090	3880	4860	6	semi-opening
7	ZY62-450-1000	10	light	1	45	7.48	20	4530	3280	3650	5150	6	semi-opening
8	ZY62-450-1200	12	light	1	45	7.60	20	3988	3717	3262	5489	6	semi-opening
9	ZY62M-300-0080	8	light	1	30	5.20	16	3789	3167	3025	4965	6	semi-opening
10	ZY63-370-0800	8	middle	1.5	37	8.50	20	3560	3365	2790	5080	6	all closing
11	ZY64-220-0150	1.5	Heavy	1.5	22	3.78	8	2937	2040	2668	3350	6	all closing

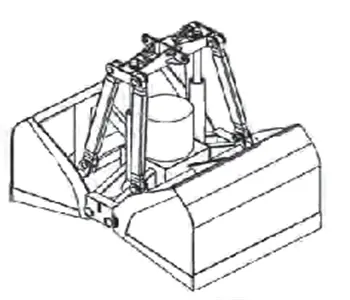

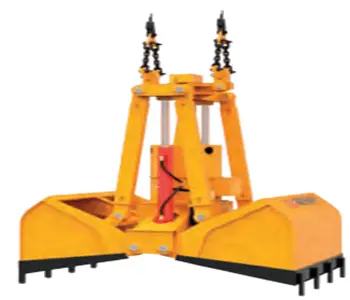

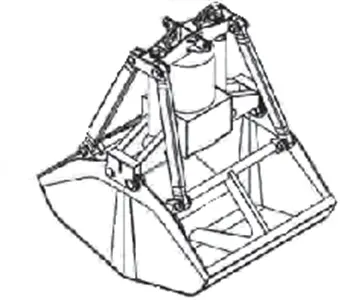

12	ZY23-150-0150	1.5	midlle	0.8~1.4	15	2.50	5	3326	1896×1600	3279	2230×1600	2	with teeth	double-jaw electric hydraulic grab
13	ZY23-185-0040	4	midlle	1.1~1.3	18.5	3.40	10	3100	2200×2100	3910	2930×2100	2
14	ZY24-220-0300	3	heavy	1.7~2.5	22	3.50	12	2957	2035×1826	2763	2582×1826	2
15	ZY24F-220-0250	2.5	heavy	1.7~2.5	22	3.50	12	2997	2035×1826	2803	2582×1826	2
16	ZY23-150-0250X	2.5	middle	1.0~1.3	15	3.11	10	3123	2023×1822	2953	2652×1822	2	with teeth
17	ZY23-220-0050X	5	middle	1.0~1.3	22	4.70	16	3560	3420×2400	3230	3050×2400	2	with teeth
18	ZY23N-150-0032X	3.2	middle	1.0~1.3	15	3.40	10	3059	2668×2000	3101	2945×2000	2
