Position: Home > Products > Crane Component
stainless steel grab
stainless steel grab
stainless steel grab
stainless steel grab
stainless steel grab

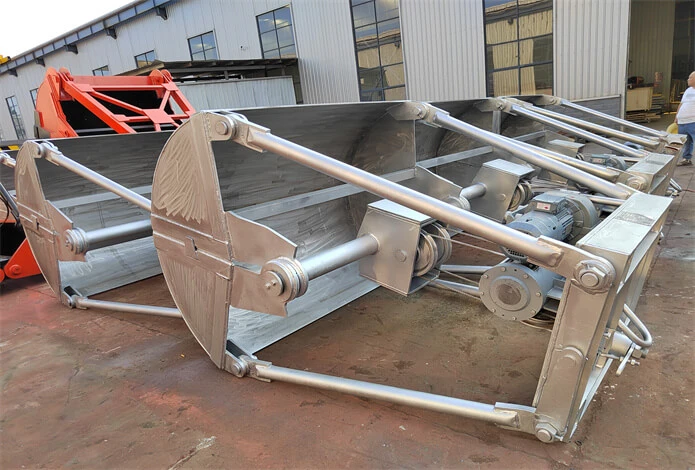

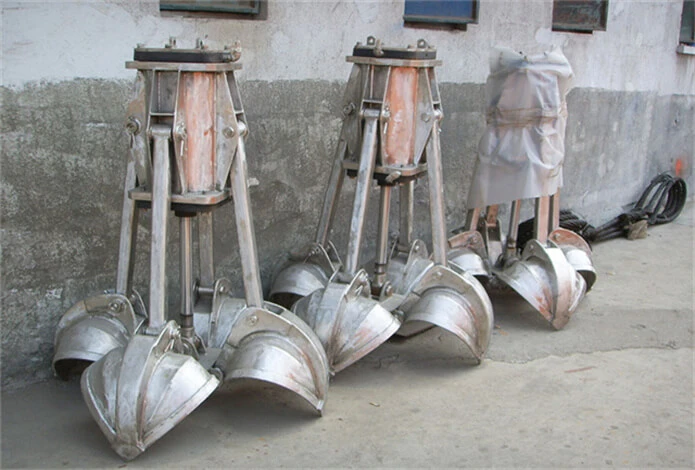

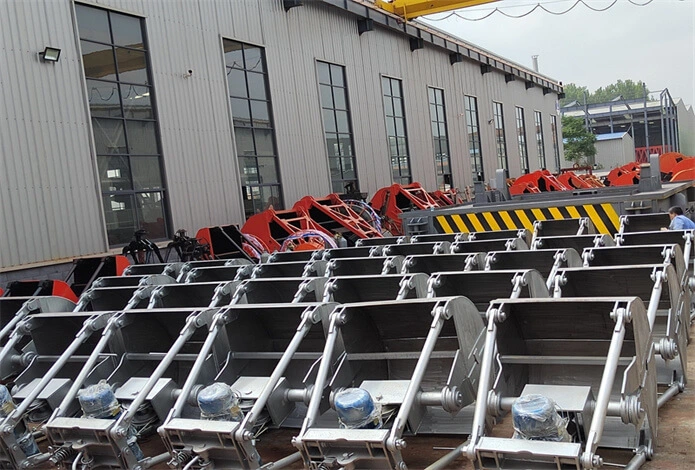

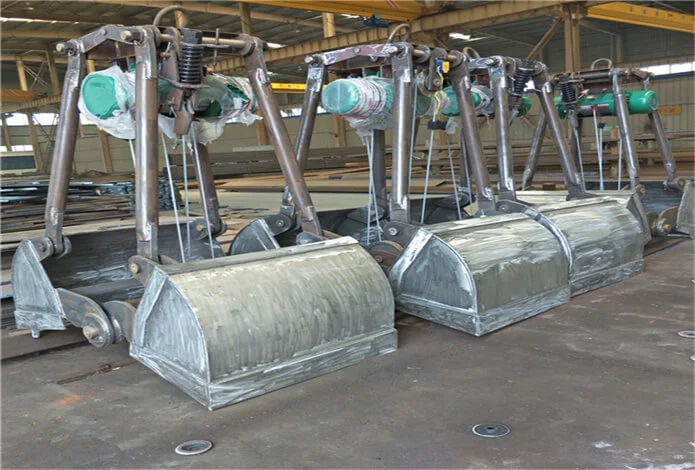

Stainless Steel Grab

Crane mode: gantry crane, overhead crane
Volume range: 0.36-20 m3
Crane maximum lifting capacity: 20 t
Cleaning processing
Main material: stainless steel
Stainless steel grab is specially customized for winery factory or food factory, used for grabbing and transporting sauce, sauce residue and so on.
Send Email
Chat Now
Product description
TECHNICAL PARAMETERS
Related products
Send Your Inquiry
Product description
Stainless steel grab is specially customized for winery factory or food factory, used for grabbing and transporting vinasse, distiller's yeast, sauce, sauce residue and so on.
For workshop and food processing, stainless steel grab is a clean processing toll , and greatly reduces labor number.

Stainless steel also can be divided into four ropes stainless steel grab, double ropes stainless steel grab, single ropes stainless steel grab and electric stainless steel grab. It is the same
as other structure grab, different feature is: the manufacturing material must be stainless steel, but, the same working principle as other grab.
♦   Crane mode: gantry crane, overhead crane
♦   Volume range: 0.36-20 m3
♦   Crane maximum lifting capacity: 20t
♦   Cleaning processing
♦   Main material: stainless steel
TECHNICAL PARAMETERS

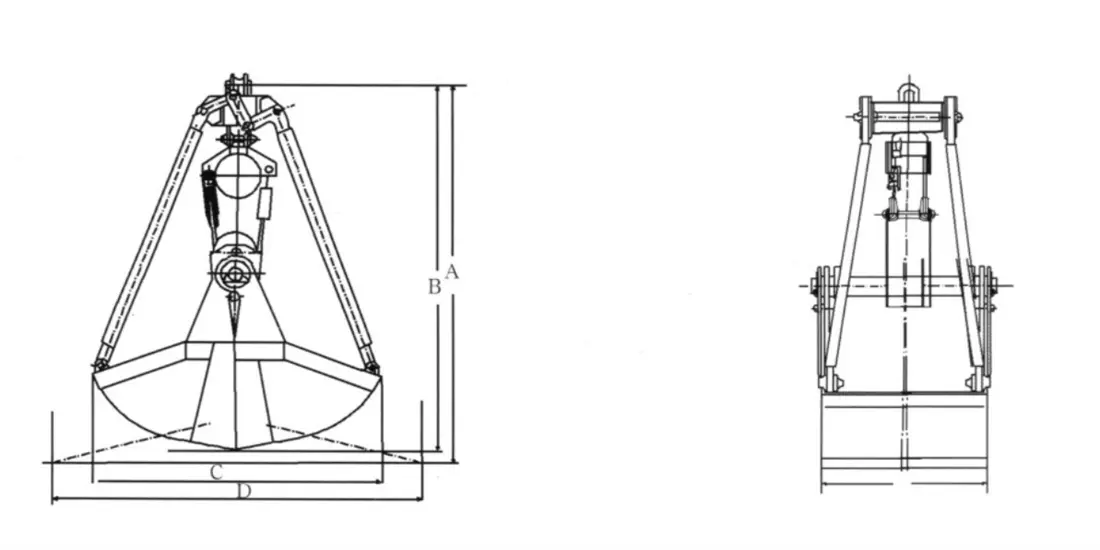

Mode Type Crane lifting capacity (t) Material density (t/m3) Self-weight  (t)  Volume (m3) Main material Dimension   (mm)
A B C D E
DBZ250 Light 1 0.9 0.7 0.36 stainless steel 1620 1520 1100 1500 700
DBZ400 Light 1.5 0.9 0.83 0.56 stainless steel 1720 1620 1200 1600 772
DBZ600 Light 1.5 0.9 0.95 0.86 stainless steel 1720 1620 1200 1600 1158
