Shipbuilding Gantry Crane

Product description

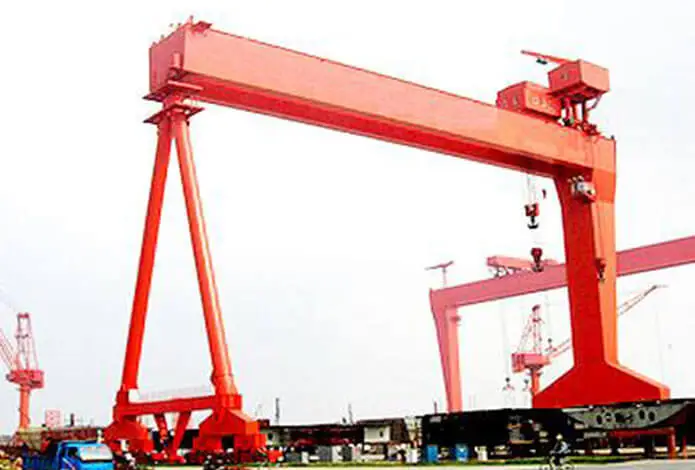

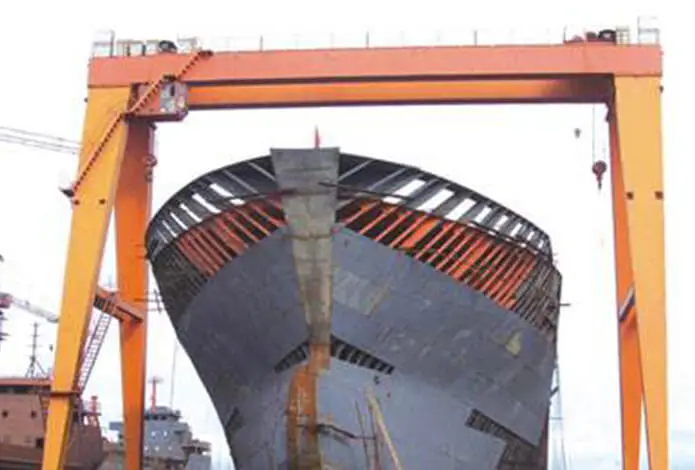

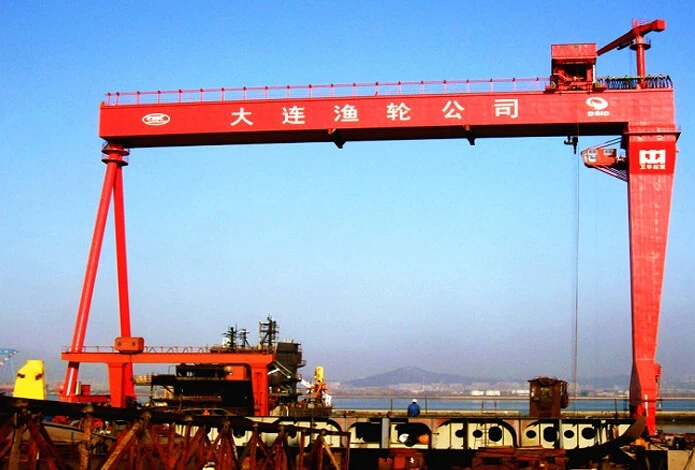

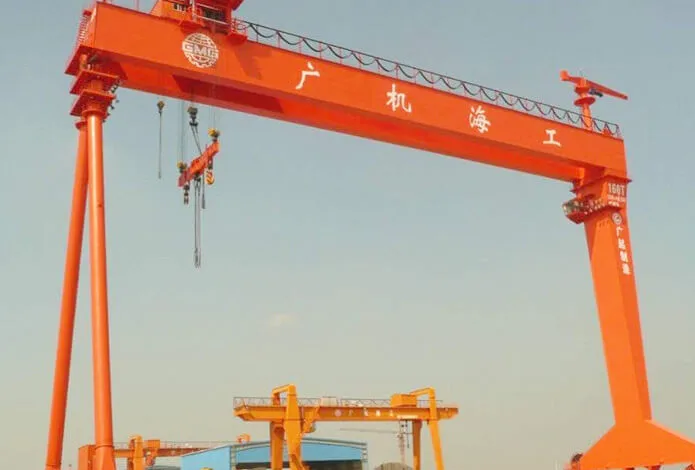

Shipbuilding gantry crane is a big lifting capacity, big span and big lifting height gantry crane, specially used for large scale ship hulls/boat body's fragmented transport, abutting joint and overturn in the dock yard. Main technical characteristics: single lifting, two trolley lifting together, overturn in the air, horizontal slight rotation; For the gantry frame, there are single girder and double girder; cross section optimization design; Upper trolley is installed outside the main girder with double hook, down trolley is installed in the central of the two girder, two trolley can work at the same time; All travel mechanism use frequency converter(VVVF) control ; There are jib crane is equipped on the crane for repairing trolley; To prevent storm attack, rail clamp and ground anchor are set up.

Lifting capacity: 400T

Electric hoist: Double trolley/crab,

Working class: A5

Working environment: Shipyard/ship hulls

Working temperature: -20°C~40°C

Control mode: Closed cabin

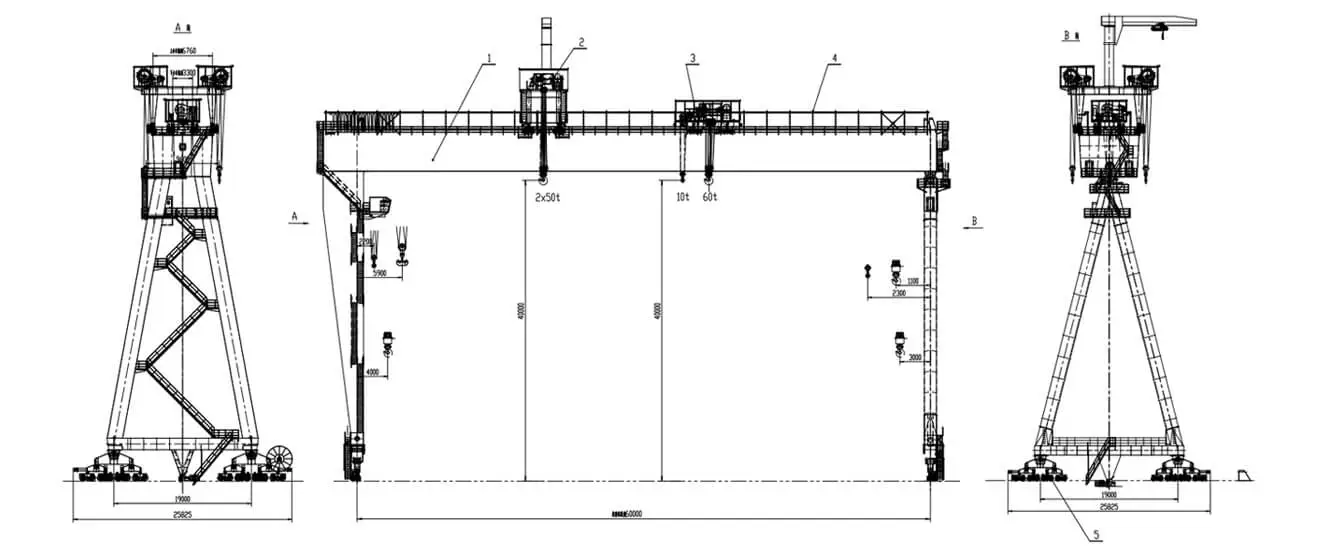

TECHNICAL PARAMETERS

Whole crane performance		Lifting mechanism			Traveling mechanism
Form	A type		Main hook	Electric hoist		whole crane	Trolley
Span	47m	lifting weight	400T	20T	Driving mode	32 wheels main driving	12 wheels main driving
Working class	A3	Lifting height	26.5m	25.2m	speed	10.8m/min	12m/min
Max wind pressure under working	300N/M2	Lifting speed	3m/min	3.5m/min	Working class	M3	M3
Max wind pressure non- working	800N/M2	Cross travel speed	5	20	Motor	7.5 kw 1480r/min	5.5 kw 1480r/min
Power source	380v-50Hz-3Phase	working class	M3		Motor	7.5 kw 1480r/min	5.5 kw 1480r/min
Total power	325kw	Motor	Equipped with 20T Trolley		Reducer	TKF 108-72.27	TKF108-81.46
Trolley weight	75T	Reducer			Brake
whole crane weight	385T	Brake			Brake
Dimensions	522635m	Drum	Φ1000mm		Wheel pressure	185Kn	300Kn
Overload limiter	Yes	Pulley	Φ960mm		Wheel	Φ500 solid widened wheel	Φ500 solid widened wheel
		Wire rope magnification	2*12		Recommended rail	QU100	Square steel
		Limit switch	DZX+L*10-31		Limit switch	L*10-12	L*10-12
