Double Girder Overhead Casting Crane

Lifting capacity: 100-180T

Lifting mechanism: Single trolley/crab, double lifting mechanism

Working class: A6-A8

Working environment: Metallurgical industry/ iron and steel plant/Casting factory/foundry plant

Working temperature: -10°C~60°C

Control mode: Cabin

Send Email

Chat Now

Share With:

Product description

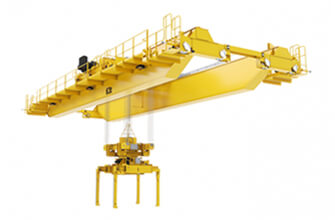

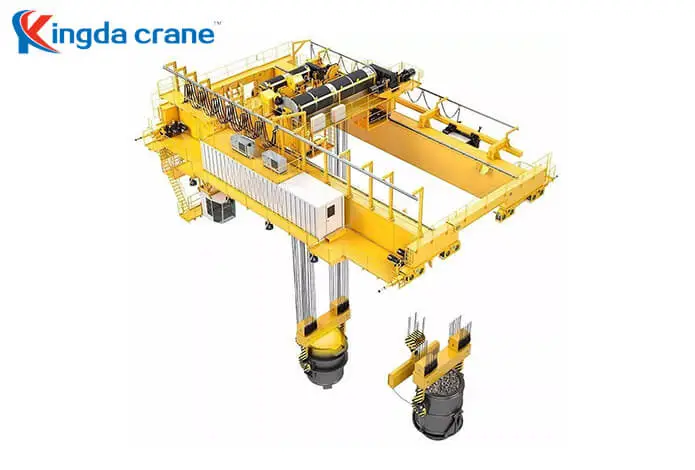

Double girder overhead casting crane is the main equipment for steelmaking and continuous casting process, mainly used to lift and transport liquid steel ladle and hot metal molten liquid. It is double girder and single trolley/crab, mainly organized by box-weld bridge, trolley/crab, connecting traverse, trolley traveling mechanism, crane traveling mechanism and control system. The main hook use fixed-width hook carrier-beam to lifting ladle, assisting by auxiliary hook, to finish the pouring of molten steel and steel slag. The long traveling mechanism and electrical device are installed in the main girder, electrical room is lined with rock wool board toprevent insulation, and equipped with thermal baffle under the main girder, to reduce heat radiation of molten steel to crane steel structure. For the long travel, the crane adopts four-corner drive. The crane equipped with electronic scale, display device, overload switch.

Lifting capacity: 100-180T

Lifting mechanism: Single trolley/crab, double lifting mechanism

Working class: A6-A8

Working environment: Metallurgical industry/ iron and steel plant/Casting factory/foundry plant

Working temperature: -10°C~60°C

Control mode: Cabin

TECHNICAL PARAMETERS

Lifting capacity(T）		100/32		125/32		140/32		160/50		180/40
working class			A7
span （mm)		19	25	19	25	19	25	19	25	19	25
Lifting height(m)	Main hook	18	25	24	20	23		24		24
Lifting height(m)	Auxiliary hook	20	27	26	22	25		26		26
Speed(m/min)	Main hook	6 .8	9.5	9.5	7.6	6.3		6		6
	Auxiliary hook	9.5	12	12	9.5	9.5		7.8		9.5
	Cross travel	37	42	42	36	34.8		36		38.8
	Long travel	68	77	77	77	77.8		68		78
Main dimensions(mm)	H	4300	4500	5150	5200	5350	5350	5600	5600	6600	6600
	H1	4500	5000	5000	5000	2750	2950	2850	3050	2850	3050
	H2	1200	1300	1350	1350	1300	1300	1350	1350	1400	1400
	BQ	13500	14800	14800	14800	12850	12850	12850	12850	16800	16800
	BS					8900	8900	10000	10000	13700	13700
	K	7800	9000	9000	9000	6500	6500	6800	6800	10500	10500
	b	410	410	410	410	400	400	400	400	400	400
Limit dimension(mm)	H3	3500	3500	380	380	5000	5000	5500	5500	6000	6000
	H4	1200	1200	1200	1200	1600	1600	1700	1700	1500	1500
	S1	2000	2000	2200	2200	2500	2500	2600	2600	26 00	2600
	S2	3700	3700	4100	4100	4600	4600	4750	4750	51 0 0	5100
	S3	4100	4100	4700	4700	4700	4700	4850	4850	5100	5100
	S4	1600	1600	1600	1600	2400	2400	2500	2500	2600	2600
Wheel quantity						8	8	16	16	16	16
Max wheel pressure (Kn)		520	545	580	595	640	665	404	420	505	530
Recommended rail		QU120
power source		380-600V 3 phase 50HZ

Related products

Four Girder Ladle Crane

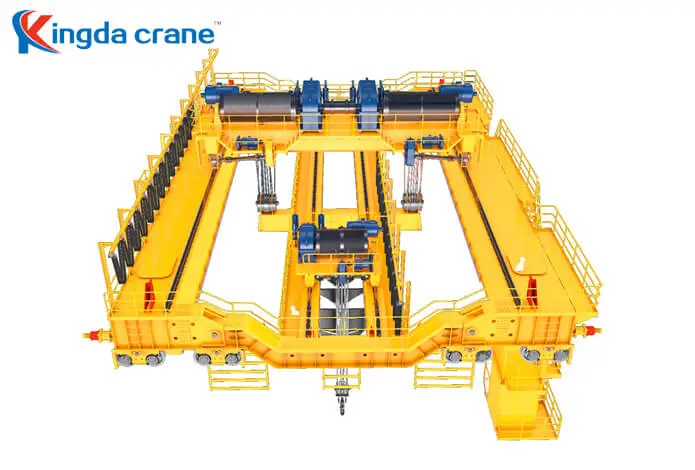

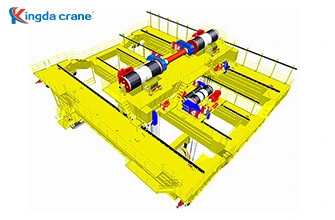

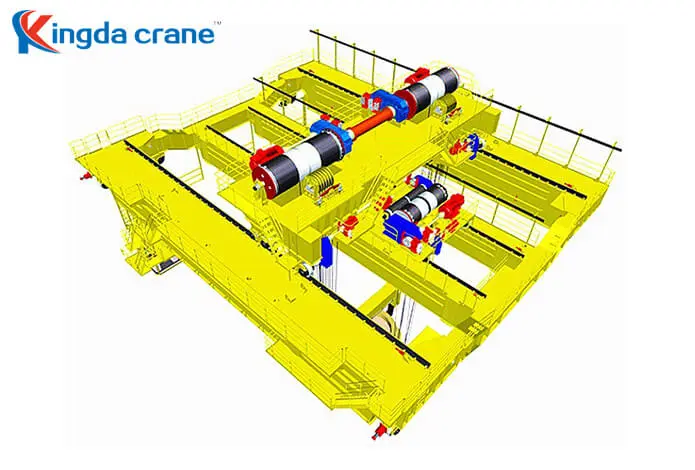

four girder ladle crane is the main equipment for steelmaking and continuous casting process, mainly used to lift and transport liquid steel ladle and hot metal molten liquid. It is four girder, double trolley/crab and four rails, mainly organized by box-weld bridge, trolley/crab, connecting traverse, trolley traveling mechanism, crane traveling mechanism and control system.
